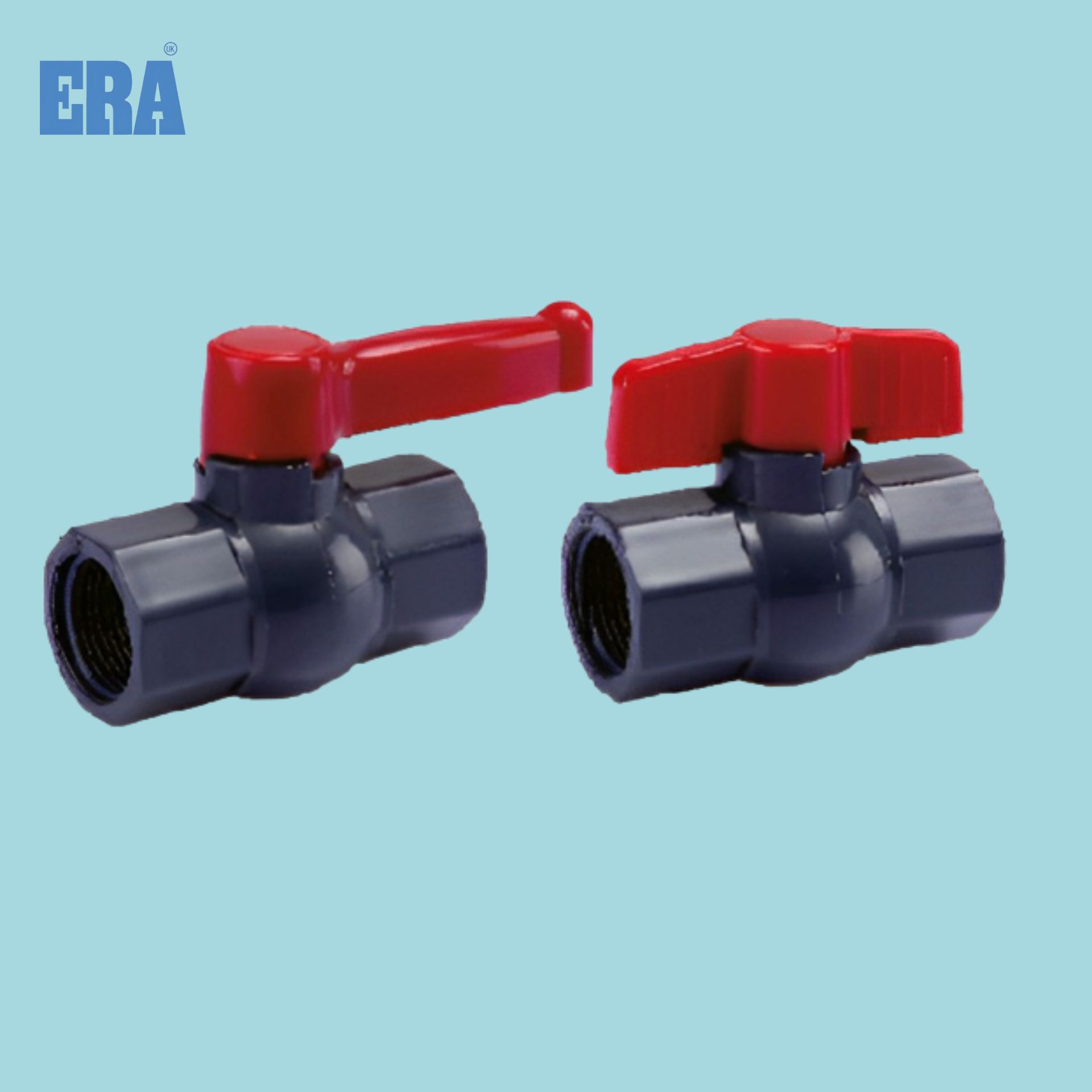

OCTAGONAL COMPACT BALL VALVE

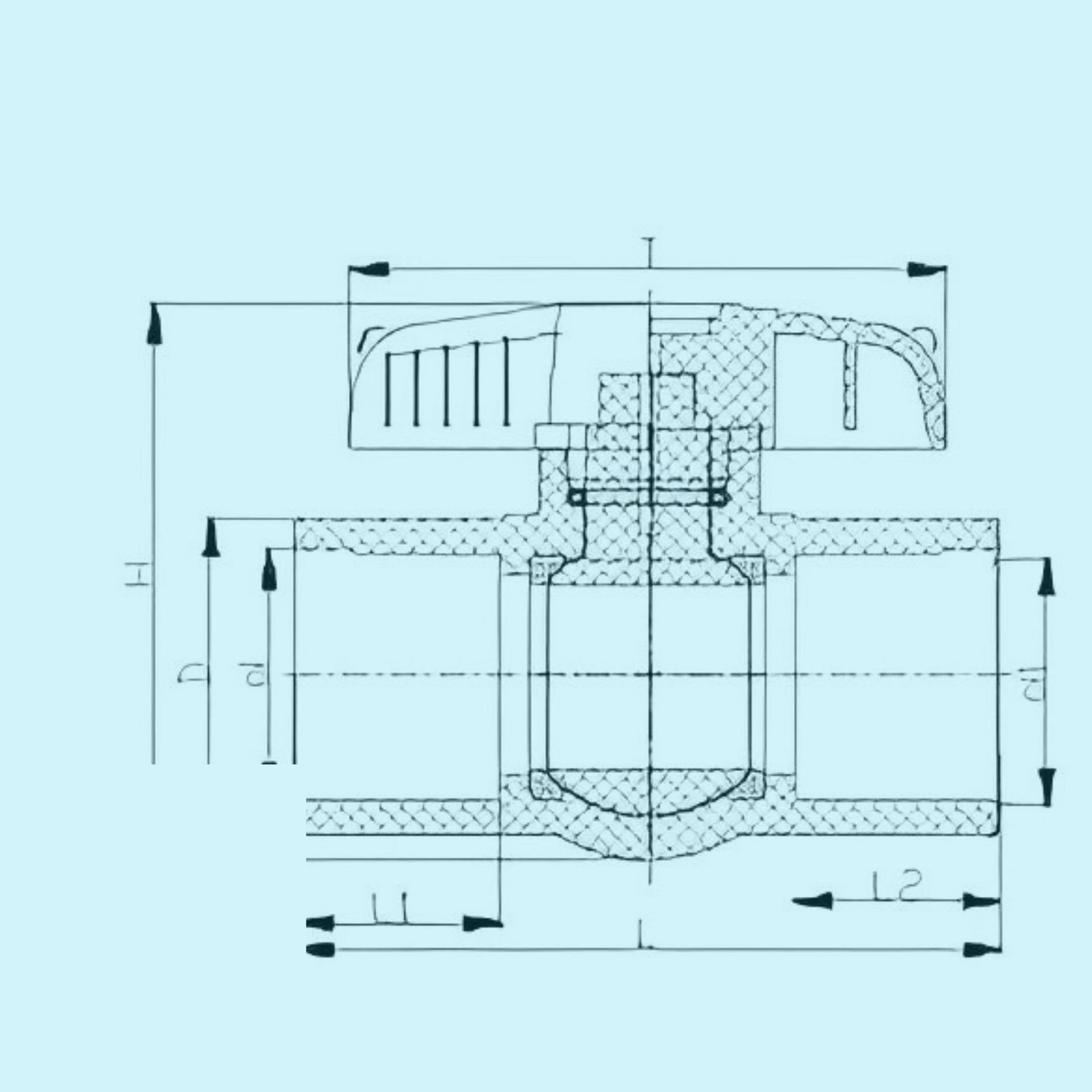

Size	NPT	BSPT	JIS	BS	ANSI	DIN	L	L1	L2	H	T
15mm(1/2")	14	14	22	22	21.34	20	69.8	18.5	18	60.1"	65
20mm(3/4")	14	14	26	26	26.67	25	79.2	22	22	69.5	71.8
25mm(1")	11.5	11	32	34	33.4	32	94.5	26.2	25	83.7	87.8
32mm(1 1/4")	11.5	11	38	42	42.16	40	106.8	26.8	26	94.5	99.6
40mm(1 1/2")	11.5	11	48	48	48.26	50	122.8	31.2	31	109.7	109.8
50mm(2")	11.5	11	60	60	60.33	63	142.7	34.5	34	129	127.5
65mm(2")	8	11	76	76	73	75	173	41.5	41.5	164.5	180
80mm(2")	8	11	89	89	88.9	90	228	65	65	191	196
100mm(2")	8	11	114	114	114.3	110	256	65.5	65.5	216	218.5
