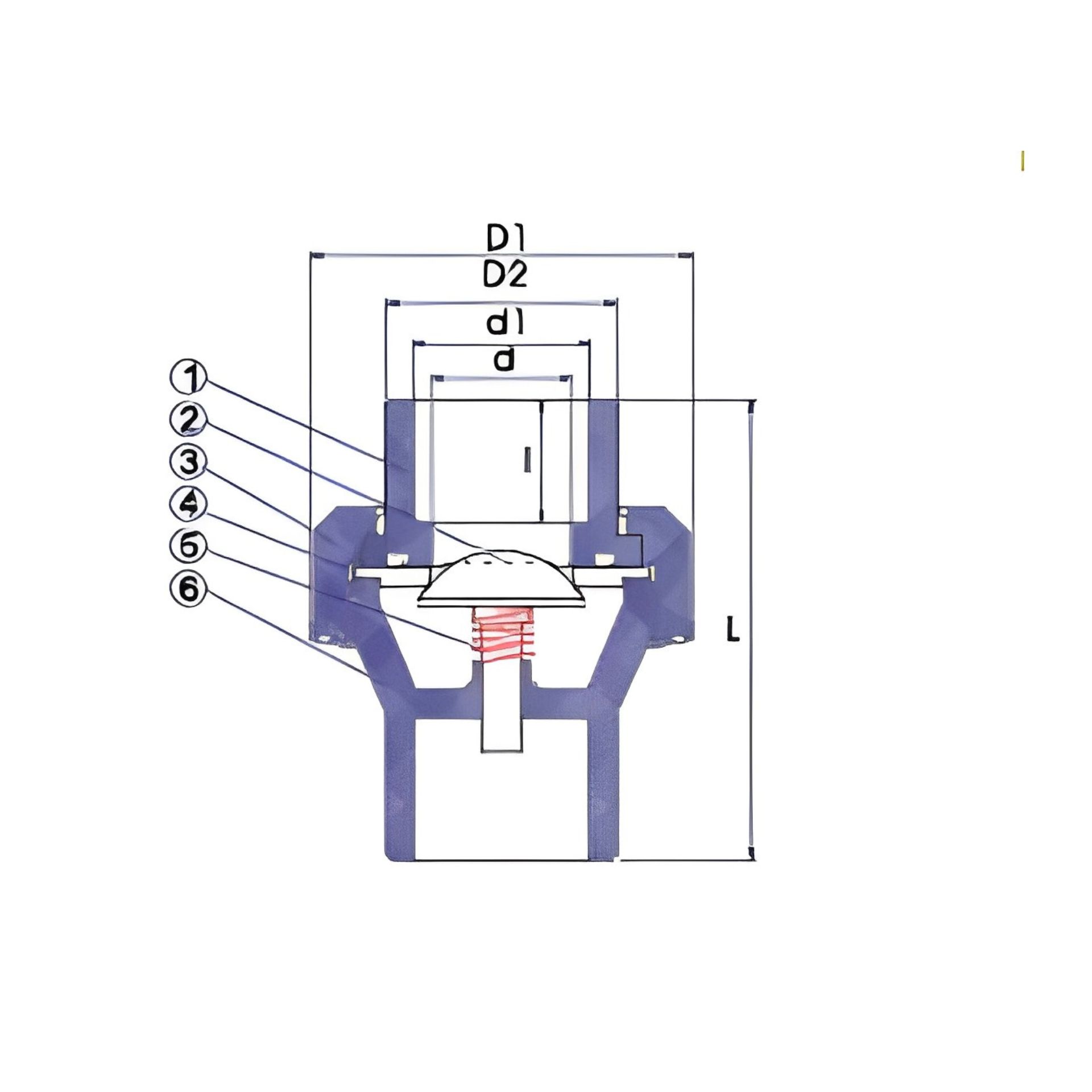

SINGLE UNION SPRING CHECK VALVE

NO	PART	MATERIAL	QTY
1	UNION CONNECTOR	PVC	1
2	GATE	PVC	1
3	UNION NUT	PVC	1
4	SPACE SEAL	EPDM,FPM(NBR)	1
5	SPRING	STAINLESS	1
6	BODY	PVC	1

Size	NPT	BSPT	JIS	BS	ANSI	DIN	d	D2	D1	I	L
15mm(1/2")	14	14	22	22	21.34	20	16	27.5	51.3	20.5	80
20mm(3/4")	14	14	26	26	26.67	25	19	35.5	65.5	22	86.5
25mm(1")	11.5	11	32	34	33.4	32	24	41.5	73.7	28.0	96
32mm(1 1/4")	11.5	11	38	42	42.16	40	32	51.6	86.8	30.0	105
40mm(1 1/2")	11.5	11	48	48	48.26	50	40	60.9	102	34.7	115.5
50mm(1 1/2")	11.5	11	60	60	60.33	63	49.8	75	119.8	40	141
