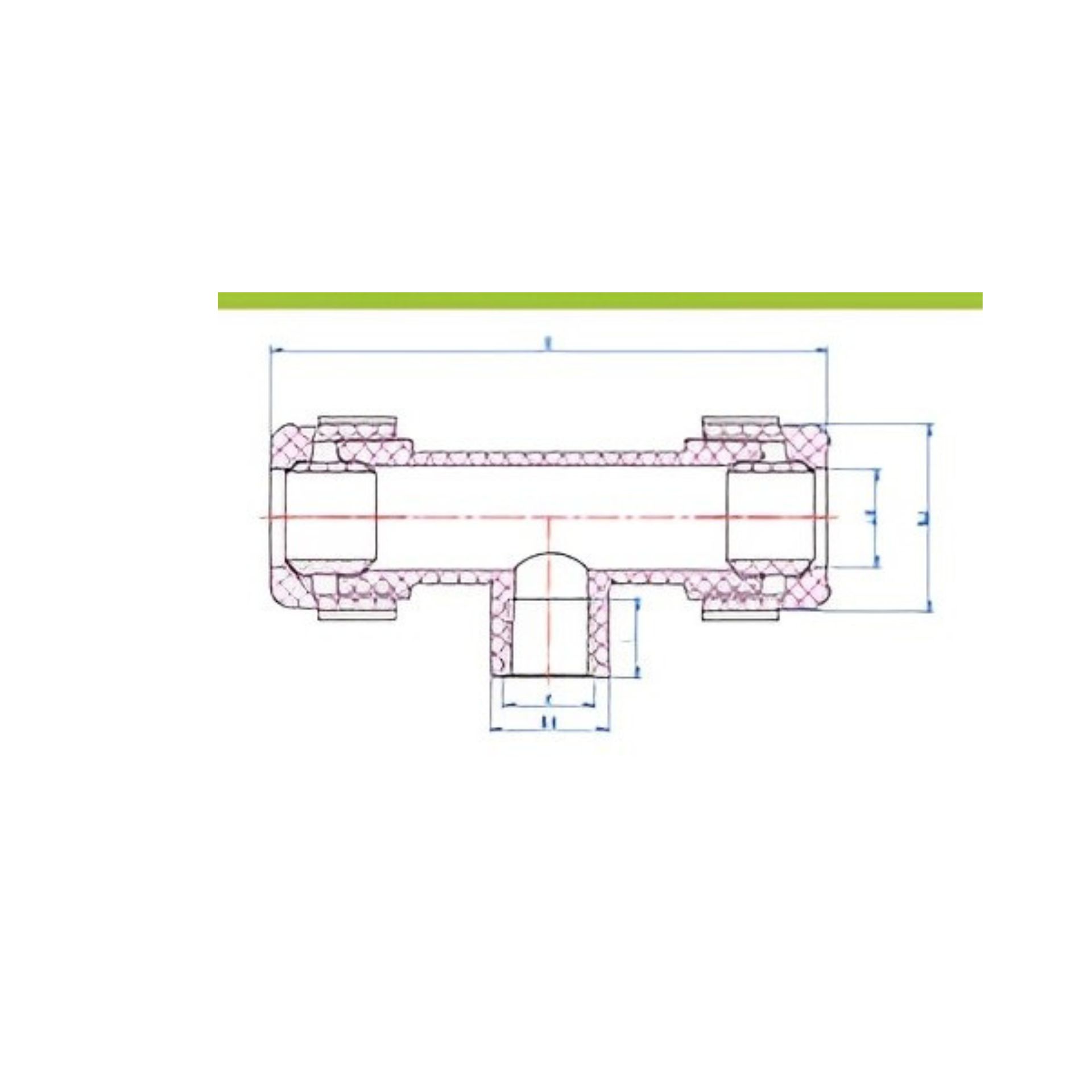

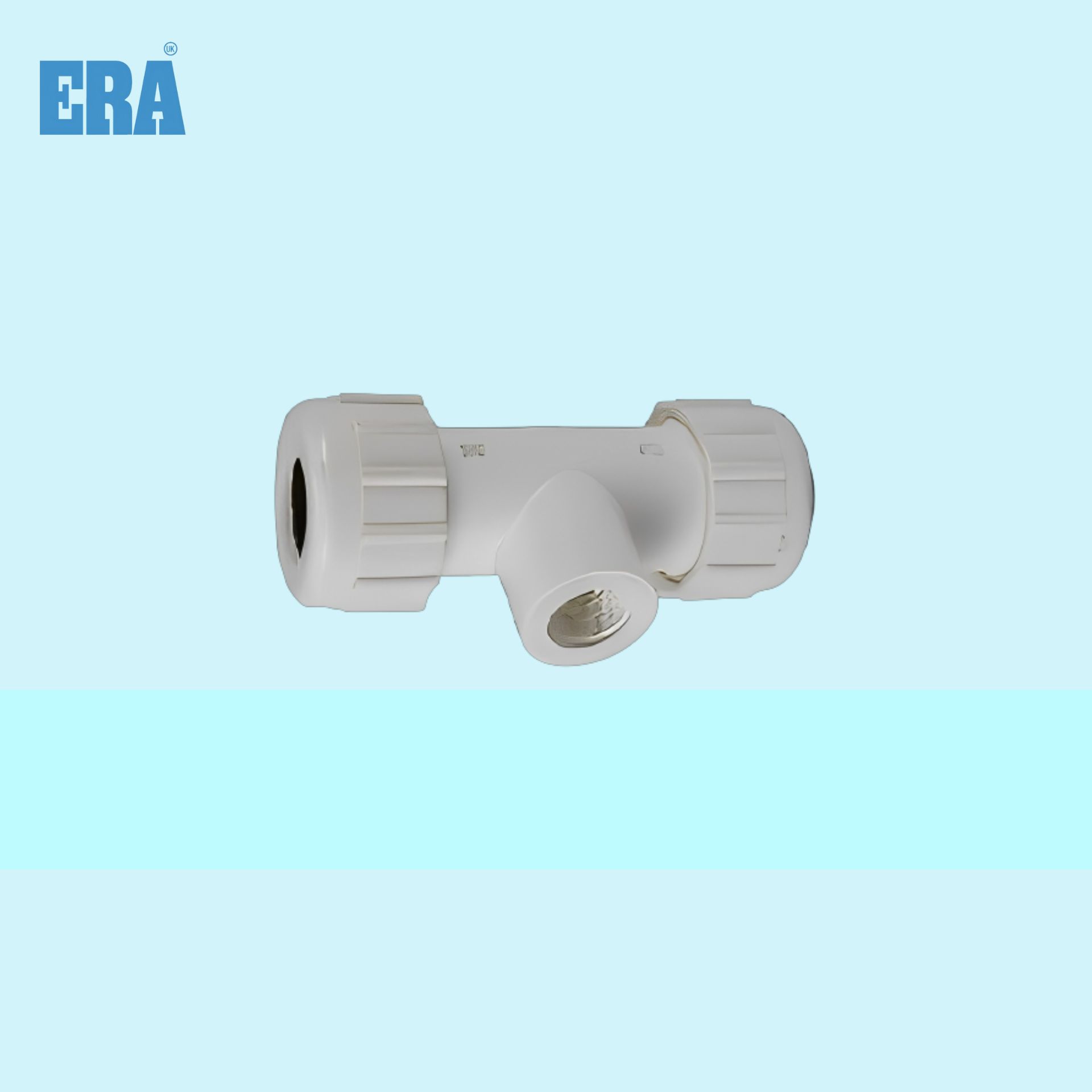

TEE, COMPRESSION X FEMALE
| Size | D | d | D1 | L | L1 | L2 |
|---|---|---|---|---|---|---|
| 1/2" | 132 | 1/2" | 28.3 | 19 | 23 | 44 | 3/4" | 132.11 | 3/4" | 34 | 20 | 28.8 | 50.4 | 1" | 150.55 | 1" | 40.6td> | 23 | 34.4 | 56.7 | 1 1/4" | 160.72 | 1 1/4" | 50 | 25 | 43.8 | 68 | 1 1/2" | 174.61 | 1 1/2" | 56.5 | 21.5 | 50.5 | 75 | 2" | 191.8 | 2" | 69.5 | 31.5 | 61.3 | 89 | 3/4"X1/2" | 138.6 | 1/2" | 28.3 | 19 | 28.8 | 50.4 |
