MALE SINGLE UNION BALL VALLVE
| NO | PART | MATERIAL | Qty |
|---|---|---|---|
| 1 | Cover | PVC-U | 1 |
| 2 | Handle | ABS | 1 |
| 3 | Stem | PVC-U | 1 |
| 4 | Stem O-Ring | EPDM | 2 |
| 5 | BODY | PVC-U | 1 |
| 6 | o-rING | EPDM | 1 |
| 7 | Seat Seal | PTFE | 2 |
| 8 | Ball | PVC-U | 1 |
| 9 | O-Ring | EPDM | 1 |
| 10 | Seal | PVC-U | 1 |
| 11 | Seal Carrier | PVC-U | 1 |
| 12 | O-Ring | EPDM | 1 |
| 13 | End Connector | PVC-U | 1 |
| 14 | Union Nut | PVC-U | 1 |

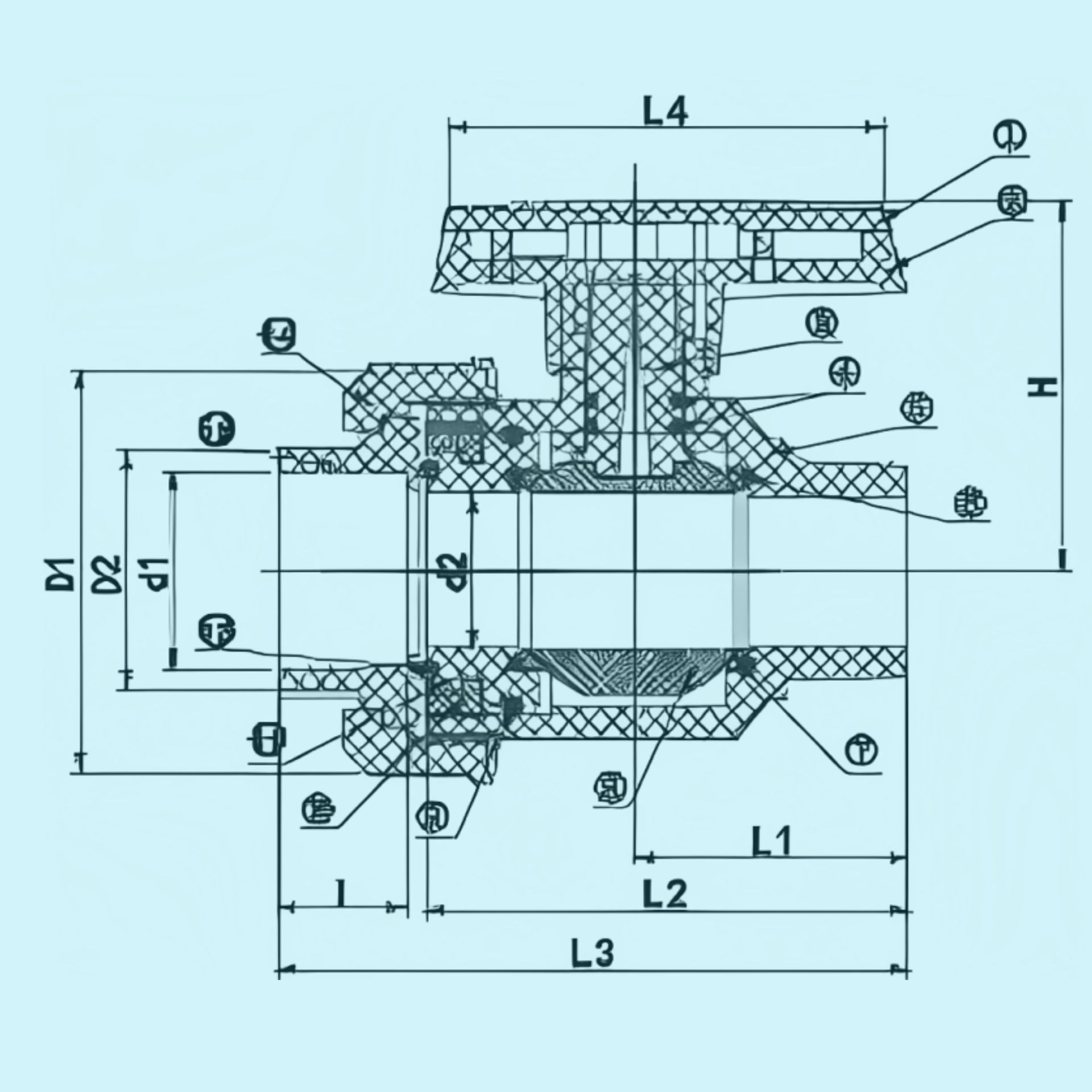

| # | Size | D1 | D2 | d1 | d2 | L1 | L2 | L3 | L4 | H | I |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 15mm(1/2") | 47.8 | 26.4 | 20.3 | 14 | 40 | 67 | 88.5 | 59.2 | 49.8 | 17 |
| 2 | 20mm(3/4") | 58.8 | 31.3 | 25.3 | 19 | 43 | 78 | 101.5 | 68.3 | 57.3 | 20 |
| 3 | 25mm(1") | 68 | 38 | 32.4 | 32 | 50 | 86 | 112 | 78.3 | 64.4 | 23.4 |
| 4 | 32mm(1 1/4") | 82.4 | 49 | 40.4 | 32.5 | 56.4 | 99.3 | 129.7 | 89.5 | 76 | 26.6 |
| 5 | 40mm(1 1/2") | 94.6 | 59.5 | 50.4 | 40 | 68.2 | 115 | 151.8 | 101.3 | 86.6 | 31.5 |
| 6 | 50mm(2") | 113 | 73.9 | 63.4 | 49.7 | 78 | 134 | 179 | 124 | 101 | 38.5 |
| 7 | 65mm(2 1/2") | 128 | 87.8 | 67 | 59.5 | 90 | 151.8 | 203.8 | 149.9 | 113.1 | 44 |
| 80mm(3") | 181 | 107.4 | 90.4 | 80 | 120.9 | 196 | 254.7 | 191.6 | 160 | 52 | |
| 9 | 100mm(4") | 204 | 132.2 | 106.5 | 96 | 139.5 | 224.5 | 295.8 | 191.6 | 230.3 | 62 |

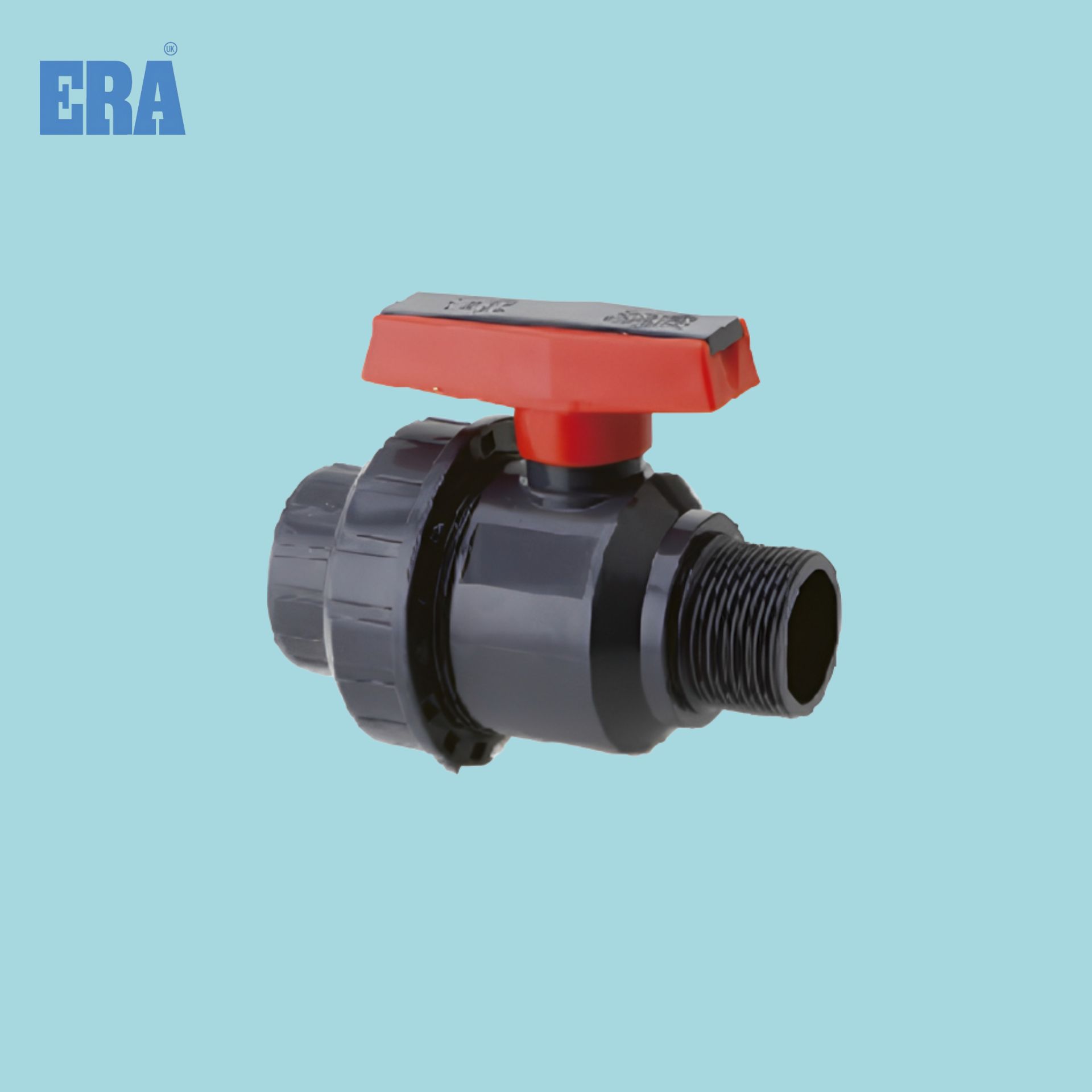

ERA PVC VALVE, PVC MALE Single Union Ball Valve, USU04, PN10 (F1970), NSF-pw & UPC
This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.
Our true union ball valves are made from durable dark gray PVC and have an easy-to-grip red handle that turns with minimal effort
System:
- A quarter-turn of the handle fully opens or closes the valve for quick shutoff.
- Easy turn handle means no pliers or breakage while turning on/off, and it's replaceable.
- A quarter-turn of the handle fully opens or closes the check valve for quick shutoff.
Specification:
- Please note - as temperature increases, working pressure decreases, the optimal working pressure for PVC VALVE is 150 psi at 73°F (22°C).
- For use with distribution of pressurized liquids, which are chemically compatible with piping materials
Scope: This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.
ERA PVC VALVE, Single Union Ball Valve, PVC SINGLE UNION BALL VALVE, USU01, PN10 (F1970), NSF-pw & UPC
This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.
Our Single Union Ball Vale/true union ball valves are made from durable dark gray PVC and have an easy-to-grip red handle that turns with minimal effort.
Specification:
- Please note - as temperature increases, working pressure decreases, the optimal working pressure for PVC VALVE is 150 psi at 73°F (22°C).
- For use with distribution of pressurized liquids, which are chemically compatible with piping materials
