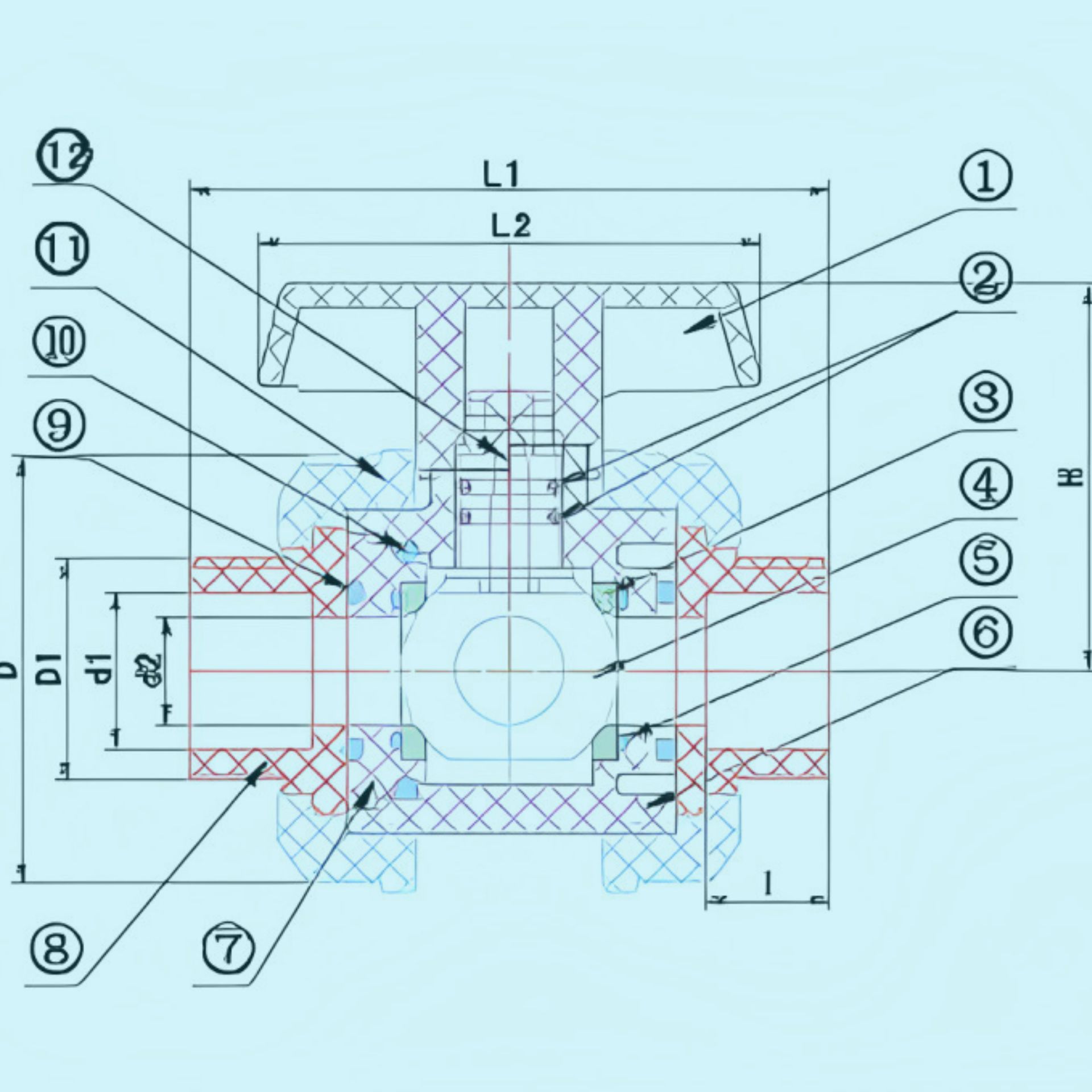

TRUE UNION VALVEIII

NO PART MATERIAL Qty
1 Handle ABS 1
2 Stem O-Ring NBR 2
3 Seat Seal PE 2
4 Ball PVC-U 1
5 O-Ring NBR 2
6 Body PVC-U 1
7 Seal Carrier PVC_U 1
8 End Connector PVC-U 1
9 O-Ring NBR 1
10 O-Ring NBR 1
11 Union NUT PVC-U 1
12 Stem PVC-U 1
+Details

# Size NPT BSPT JIS(d1) BS(d1) ANSI(d1) DIN(d1) d2 D1 D I L1 L2 H
1 15mm(1/2") 14 14 22 22 21.34 20 14 26 55 16 82.50 65 49.50
2 20mm(3/4") 14 14 26 26 26.67 25 18 36 60 19 92 80 54.50
3 25mm(1") 11.50 11 32 34 33.40 32 25 44 69 22.50 107 85 62
4 32mm(1 1/4") 11.50 11 38 42 42.16 40 32 56 81.50 26 120 97 74
5 40mm(1 1/2") 11.50 11 48 48 48.26 50 40 63 93 31.50 144 116 85
6 50mm(2") 11.50 11 60 60 60.33 63 50 78 111 38.50 172 134 100
ERA PVC VALVE

ERA PVC VALVE

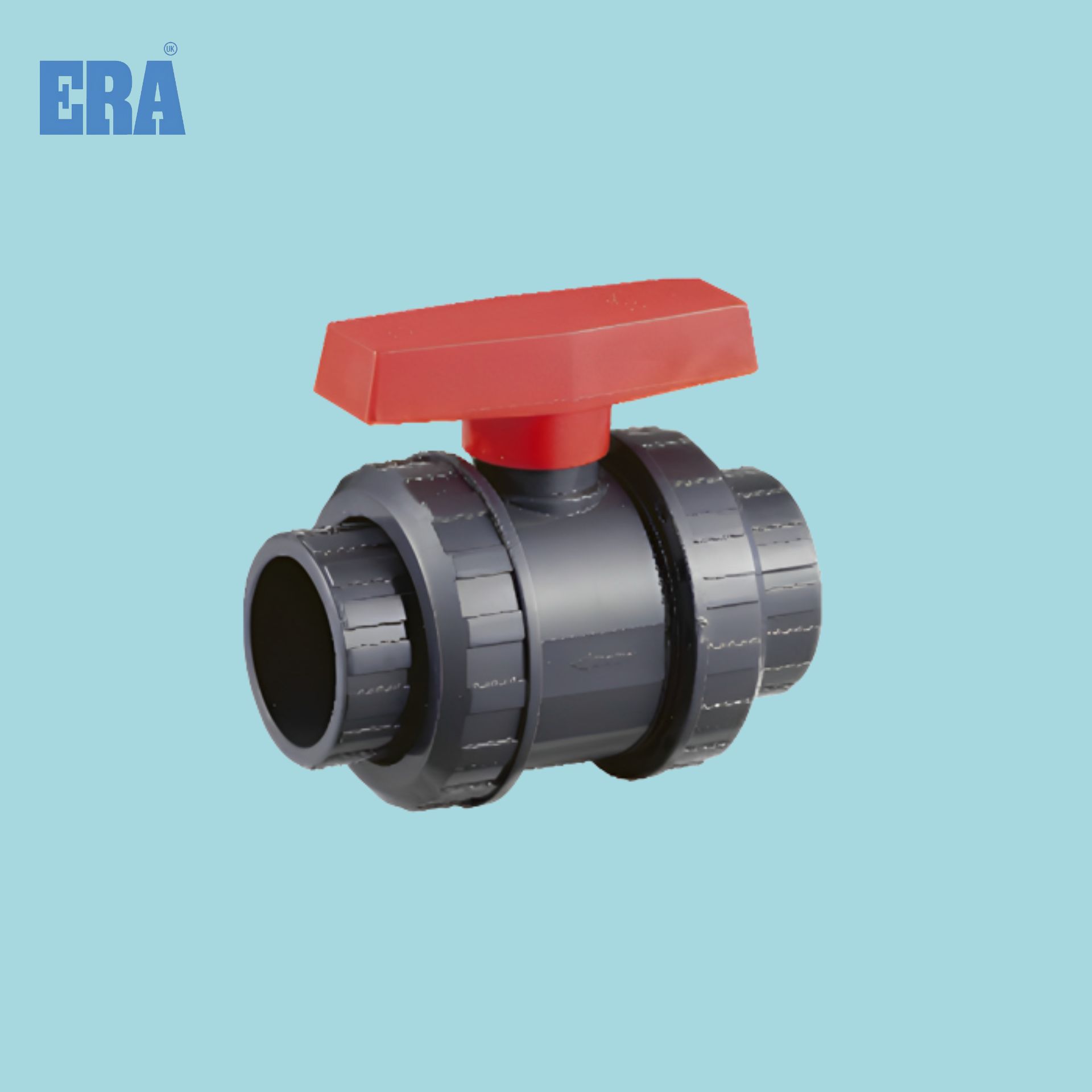

PVC True Union Ball Valve Ⅲ, UTB03, PN10 (F1970), NSF-pw & UPC

Scope: True Union Ball Valve have a carrier that can be removed from the piping system when needed.

Our True Union Ball Valve are made from durable dark gray PVC VALVE and have an easy-to-grip red handle that turns with minimal effort.

Specifications

  • Material: PVC VALVE
  • Standard: ISO 9393-1:2004
  • Working Pressure: PN10
  • Certificate: NSF-pw & UPC
  • System: For use with distribution of pressurized liquids, which are chemically compatible with piping materials
  • Size: 1/2''-4''
  • Temperature: Max 140°F
  • Color: Dark Gray

Our True Union Ball Valve are not only durably and made from a heavy duty material - but also a very affordable and economic option to your project or service need.

Full port allowing maximum flow and minimum pressure drop or turbulence.

Easy turn handle means no pliers or breakage while turning on/off, and it's replaceable!
